SMP Female to SMP Female Adapter 12.6mm Long Bullet

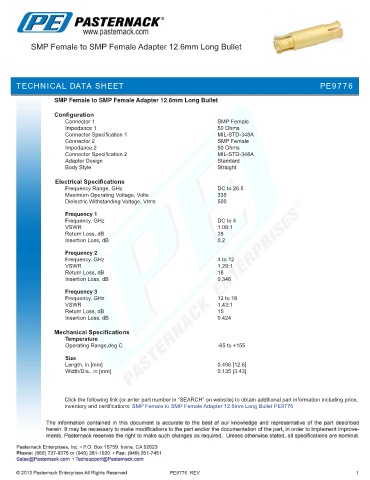

TECHNICAL DATA SHEET PE9776
SMP Female to SMP Female Adapter 12.6mm Long Bullet
Configuration
Connector 1 SMP Female
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348A
Connector 2 SMP Female
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348A
Adapter Design Standard
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 26.5
Maximum Operating Voltage, Volts 335
Dielectric Withstanding Voltage, Vrms 500
Frequency 1
Frequency, GHz DC to 4
VSWR 1.08:1
Return Loss, dB 28
Insertion Loss, dB 0.2
Frequency 2
Frequency, GHz 4 to 12
VSWR 1.29:1
Return Loss, dB 18
Insertion Loss, dB 0.346
Frequency 3
Frequency, GHz 12 to 18
VSWR 1.43:1
Return Loss, dB 15
Insertion Loss, dB 0.424
Mechanical Specifications
Temperature
Operating Range,deg C -65 to +155
Size
Length, in [mm] 0.496 [12.6]
Width/Dia., in [mm] 0.135 [3.43]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter 12.6mm Long Bullet PE9776
PE9776 REV 1
