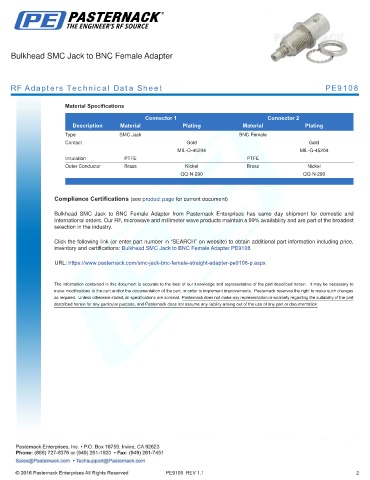

Bulkhead SMC Jack to BNC Female Adapter

RF Adapters Technical Data Sheet PE9108

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMC Jack BNC Female
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Compliance Certifications (see product page for current document)

Bulkhead SMC Jack to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead SMC Jack to BNC Female Adapter PE9108

URL: https://www.pasternack.com/smc-jack-bnc-female-straight-adapter-pe9108-p.aspx
