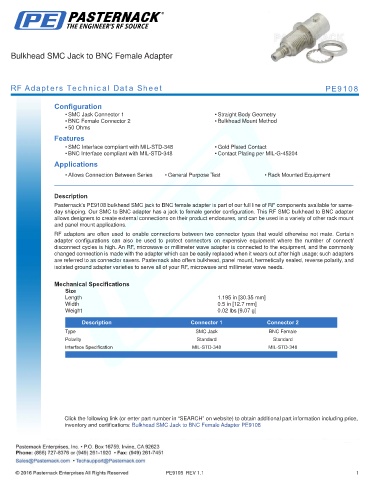

Bulkhead SMC Jack to BNC Female Adapter

RF Adapters Technical Data Sheet PE9108

Configuration
• SMC Jack Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• SMC Interface compliant with MIL-STD-348 • Gold Plated Contact
• BNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9108 bulkhead SMC jack to BNC female adapter is part of our full line of RF components available for same-
day shipping. Our SMC to BNC adapter has a jack to female gender configuration. This RF SMC bulkhead to BNC adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.195 in [30.35 mm]
Width 0.5 in [12.7 mm]
Weight 0.02 lbs [9.07 g]
.
Description Connector 1 Connector 2
Type SMC Jack BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead SMC Jack to BNC Female Adapter PE9108

PE9108 REV 1.1 1
