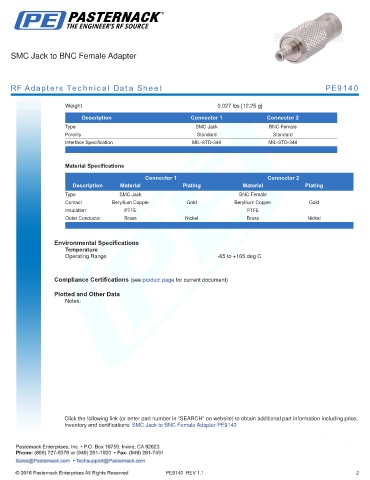

SMC Jack to BNC Female Adapter
RF Adapters Technical Data Sheet PE9140
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type SMC Jack BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMC Jack BNC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Jack to BNC Female Adapter PE9140
PE9140 REV 1.1 2
