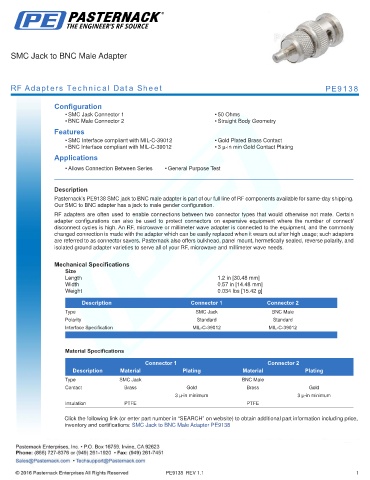

SMC Jack to BNC Male Adapter

RF Adapters Technical Data Sheet PE9138

Configuration
• SMC Jack Connector 1 • 50 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features
• SMC Interface compliant with MIL-C-39012 • Gold Plated Brass Contact
• BNC Interface compliant with MIL-C-39012 • 3 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9138 SMC jack to BNC male adapter is part of our full line of RF components available for same-day shipping.
Our SMC to BNC adapter has a jack to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.2 in [30.48 mm]
Width 0.57 in [14.48 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type SMC Jack BNC Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMC Jack BNC Male
Contact Brass Gold Brass Gold
3 µ-in minimum 3 µ-in minimum
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Jack to BNC Male Adapter PE9138
