SMC Plug to SMB Plug Adapter

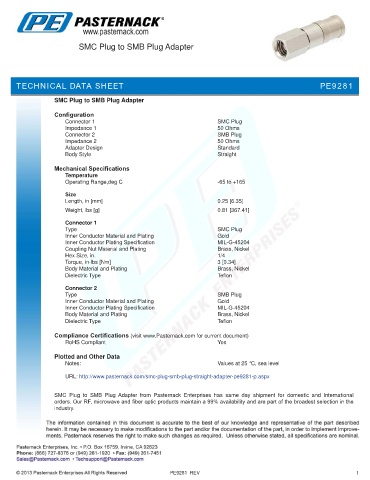

TECHNICAL DATA SHEET PE9281

SMC Plug to SMB Plug Adapter

Configuration
Connector 1 SMC Plug
Impedance 1 50 Ohms
Connector 2 SMB Plug
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.81 [367.41]
Connector 1
Type SMC Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 1/4
Torque, in-lbs [Nm] 3 [0.34]
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type SMB Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/smc-plug-smb-plug-straight-adapter-pe9281-p.aspx

SMC Plug to SMB Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9281 REV 1
