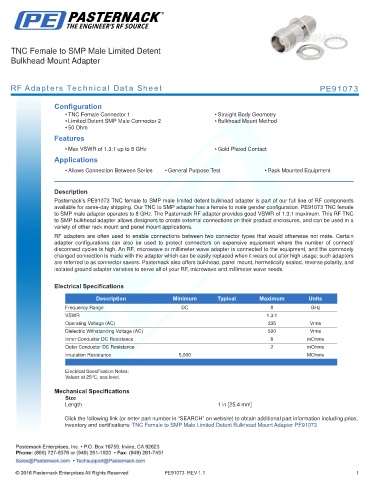

TNC Female to SMP Male Limited Detent
Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE91073

Configuration
• TNC Female Connector 1 • Straight Body Geometry
• Limited Detent SMP Male Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.3:1 up to 8 GHz • Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE91073 TNC female to SMP male limited detent bulkhead adapter is part of our full line of RF components
available for same-day shipping. Our TNC to SMP adapter has a female to male gender configuration. PE91073 TNC female
to SMP male adapter operates to 8 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF TNC
to SMP bulkhead adapter allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1 in [25.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female to SMP Male Limited Detent Bulkhead Mount Adapter PE91073

PE91073 REV 1.1 1
