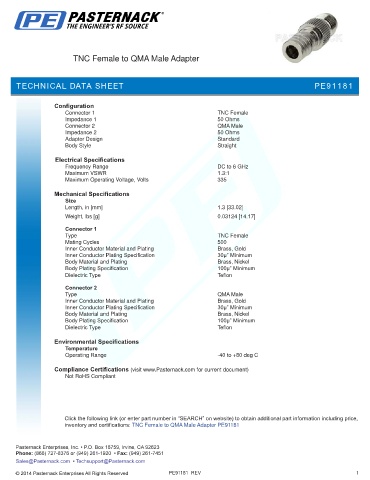

TNC Female to QMA Male Adapter

TECHNICAL DATA SHEET PE91181

Configuration
Connector 1 TNC Female
Impedance 1 50 Ohms
Connector 2 QMA Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.3:1
Maximum Operating Voltage, Volts 335

Mechanical Specifications
Size
Length, in [mm] 1.3 [33.02]
.
Weight, lbs [g] 0.03124 [14.17]
Connector 1
Type TNC Female
Mating Cycles 500
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ” Minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ” Minimum
Dielectric Type Teflon

Connector 2
Type QMA Male
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ” Minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ” Minimum
Dielectric Type Teflon

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female to QMA Male Adapter PE91181

PE91181 REV 1
