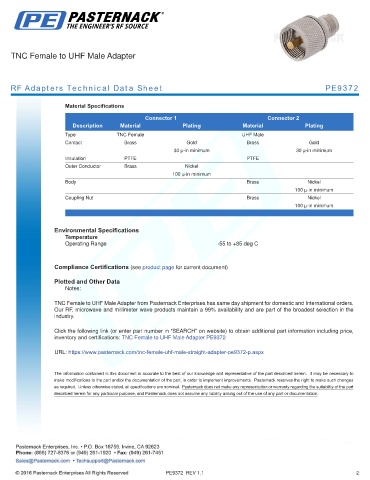

TNC Female to UHF Male Adapter

RF Adapters Technical Data Sheet PE9372

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type TNC Female UHF Male
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Female to UHF Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female to UHF Male Adapter PE9372

URL: https://www.pasternack.com/tnc-female-uhf-male-straight-adapter-pe9372-p.aspx

PE9372 REV 1.1 2
