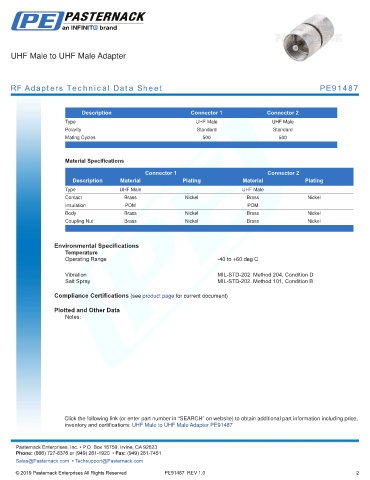

UHF Male to UHF Male Adapter

RF Adapters Technical Data Sheet PE91487

.
Description Connector 1 Connector 2
Type UHF Male UHF Male
Polarity Standard Standard
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type UHF Male UHF Male
Contact Brass Nickel Brass Nickel
Insulation POM POM
Body Brass Nickel Brass Nickel
Coupling Nut Brass Nickel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.
Vibration MIL-STD-202. Method 204, Condition D
Salt Spray MIL-STD-202. Method 101, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to UHF Male Adapter PE91487
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
