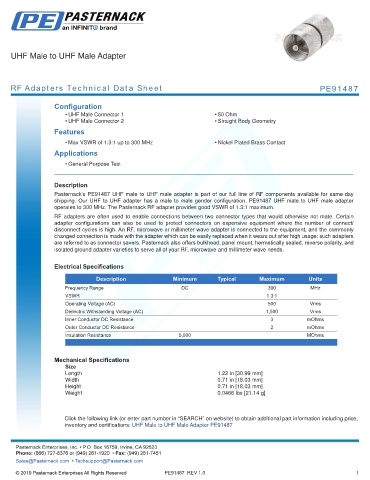

UHF Male to UHF Male Adapter
RF Adapters Technical Data Sheet PE91487
Configuration
• UHF Male Connector 1 • 50 Ohm
• UHF Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 300 MHz • Nickel Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91487 UHF male to UHF male adapter is part of our full line of RF components available for same-day
shipping. Our UHF to UHF adapter has a male to male gender configuration. PE91487 UHF male to UHF male adapter
operates to 300 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .
Mechanical Specifications
Size
Length 1.22 in [30.99 mm]
Width 0.71 in [18.03 mm]
Height 0.71 in [18.03 mm]
Weight 0.0466 lbs [21.14 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to UHF Male Adapter PE91487
-
