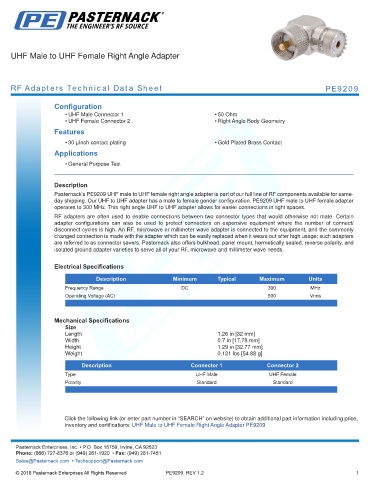

UHF Male to UHF Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9209

Configuration
• UHF Male Connector 1 • 50 Ohm
• UHF Female Connector 2 • Right Angle Body Geometry
Features

• 30 µInch contact plating • Gold Plated Brass Contact
Applications

• General Purpose Test
.
Description
Pasternack’s PE9209 UHF male to UHF female right angle adapter is part of our full line of RF components available for same-
day shipping. Our UHF to UHF adapter has a male to female gender configuration. PE9209 UHF male to UHF female adapter
operates to 300 MHz. This right angle UHF to UHF adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.26 in [32 mm]
Width 0.7 in [17.78 mm]
Height 1.29 in [32.77 mm]
Weight 0.121 lbs [54.88 g]
.
Description Connector 1 Connector 2
Type UHF Male UHF Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to UHF Female Right Angle Adapter PE9209
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9209 REV 1.2 1
