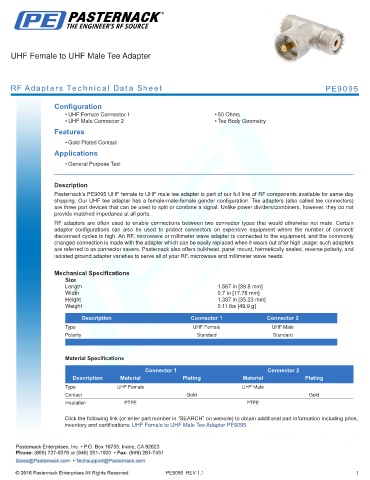

UHF Female to UHF Male Tee Adapter

RF Adapters Technical Data Sheet PE9095

Configuration
• UHF Female Connector 1 • 50 Ohms
• UHF Male Connector 2 • Tee Body Geometry
Features

• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9095 UHF female to UHF male tee adapter is part of our full line of RF components available for same-day
shipping. Our UHF tee adapter has a female-male-female gender configuration. Tee adapters (also called tee connectors)
are three port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not
provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.567 in [39.8 mm]
Width 0.7 in [17.78 mm]
Height 1.387 in [35.23 mm]
Weight 0.11 lbs [49.9 g]
.
Description Connector 1 Connector 2
Type UHF Female UHF Male
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type UHF Female UHF Male
Contact Gold Gold
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to UHF Male Tee Adapter PE9095
