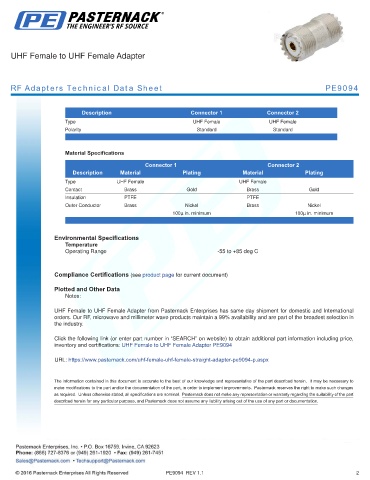

UHF Female to UHF Female Adapter

RF Adapters Technical Data Sheet PE9094

.
Description Connector 1 Connector 2
Type UHF Female UHF Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type UHF Female UHF Female
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

UHF Female to UHF Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to UHF Female Adapter PE9094

URL: https://www.pasternack.com/uhf-female-uhf-female-straight-adapter-pe9094-p.aspx

PE9094 REV 1.1 2
