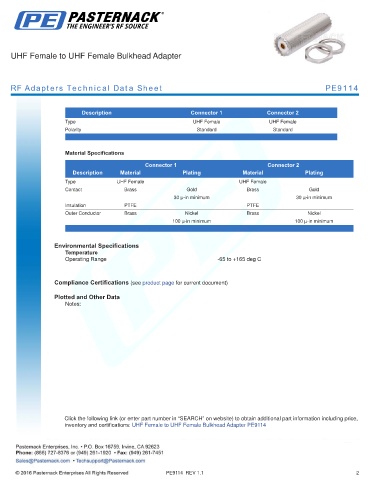

UHF Female to UHF Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9114

.
Description Connector 1 Connector 2
Type UHF Female UHF Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type UHF Female UHF Female
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to UHF Female Bulkhead Adapter PE9114

PE9114 REV 1.1 2
