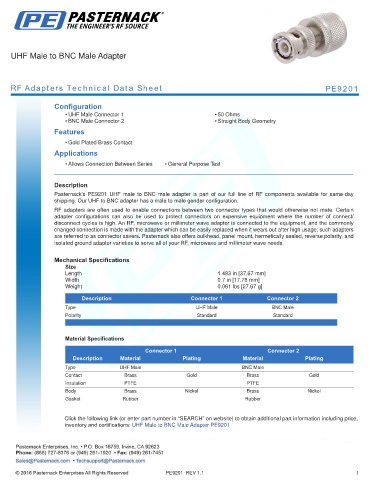

UHF Male to BNC Male Adapter

RF Adapters Technical Data Sheet PE9201

Configuration
• UHF Male Connector 1 • 50 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9201 UHF male to BNC male adapter is part of our full line of RF components available for same-day
shipping. Our UHF to BNC adapter has a male to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.483 in [37.67 mm]
Width 0.7 in [17.78 mm]
Weight 0.061 lbs [27.67 g]
.
Description Connector 1 Connector 2
Type UHF Male BNC Male
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type UHF Male BNC Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
Gasket Rubber Rubber

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to BNC Male Adapter PE9201
