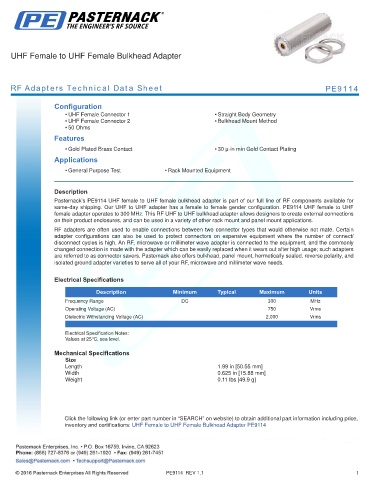

UHF Female to UHF Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9114

Configuration
• UHF Female Connector 1 • Straight Body Geometry
• UHF Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Gold Plated Brass Contact • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9114 UHF female to UHF female bulkhead adapter is part of our full line of RF components available for
same-day shipping. Our UHF to UHF adapter has a female to female gender configuration. PE9114 UHF female to UHF
female adapter operates to 300 MHz. This RF UHF to UHF bulkhead adapter allows designers to create external connections
on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
Operating Voltage (AC) 750 Vrms
Dielectric Withstanding Voltage (AC) 2,000 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.99 in [50.55 mm]
Width 0.625 in [15.88 mm]
Weight 0.11 lbs [49.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to UHF Female Bulkhead Adapter PE9114

PE9114 REV 1.1 1
