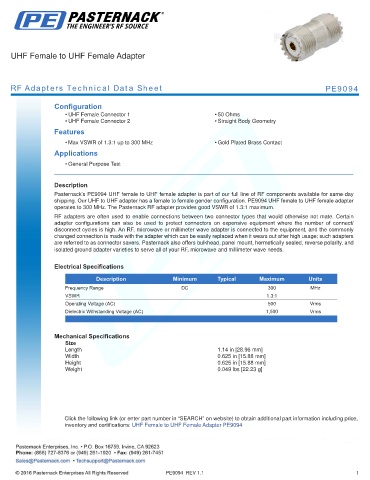

UHF Female to UHF Female Adapter

RF Adapters Technical Data Sheet PE9094

Configuration
• UHF Female Connector 1 • 50 Ohms
• UHF Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.3:1 up to 300 MHz • Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9094 UHF female to UHF female adapter is part of our full line of RF components available for same-day
shipping. Our UHF to UHF adapter has a female to female gender configuration. PE9094 UHF female to UHF female adapter
operates to 300 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
. .

Mechanical Specifications
Size
Length 1.14 in [28.96 mm]
Width 0.625 in [15.88 mm]
Height 0.625 in [15.88 mm]
Weight 0.049 lbs [22.23 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to UHF Female Adapter PE9094

PE9094 REV 1.1 1
