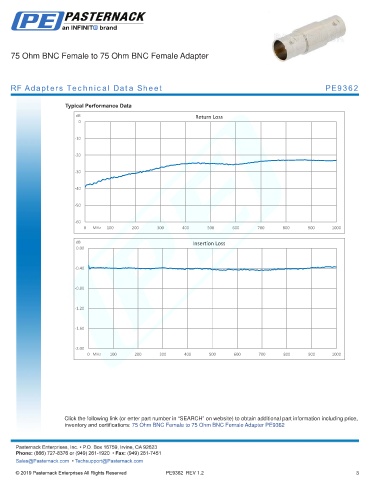

75 Ohm BNC Female to 75 Ohm BNC Female Adapter
RF Adapters Technical Data Sheet PE9362
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
0 MHz 100 200 300 400 500 600 700 800 900 1000
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0 MHz 100 200 300 400 500 600 700 800 900 1000
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female to 75 Ohm BNC Female Adapter PE9362
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE9362 REV 1.2 3
