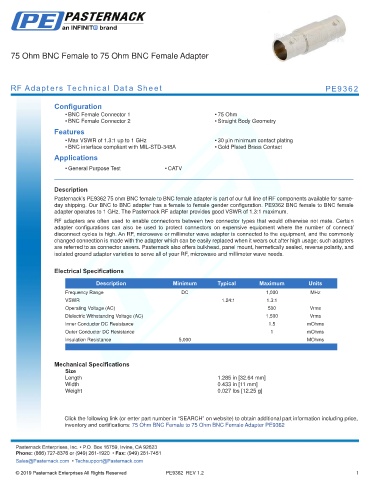

75 Ohm BNC Female to 75 Ohm BNC Female Adapter

RF Adapters Technical Data Sheet PE9362

Configuration
• BNC Female Connector 1 • 75 Ohm
• BNC Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 1 GHz • 30 µin minimum contact plating
• BNC interface compliant with MIL-STD-348A • Gold Plated Brass Contact
Applications
• General Purpose Test • CATV
.
Description
Pasternack’s PE9362 75 ohm BNC female to BNC female adapter is part of our full line of RF components available for same-
day shipping. Our BNC to BNC adapter has a female to female gender configuration. PE9362 BNC female to BNC female
adapter operates to 1 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.24:1 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 1.285 in [32.64 mm]
Width 0.433 in [11 mm]
Weight 0.027 lbs [12.25 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female to 75 Ohm BNC Female Adapter PE9362
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9362 REV 1.2 1
