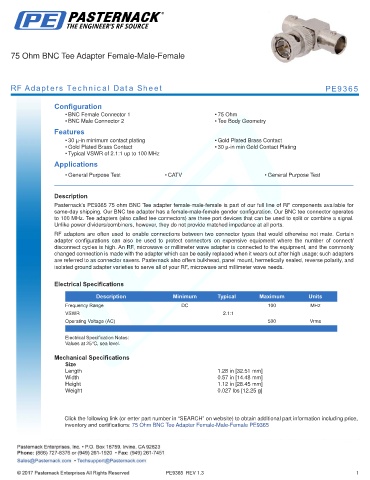

75 Ohm BNC Tee Adapter Female-Male-Female

RF Adapters Technical Data Sheet PE9365

Configuration
• BNC Female Connector 1 • 75 Ohm
• BNC Male Connector 2 • Tee Body Geometry
Features
• 30 µ-in minimum contact plating • Gold Plated Brass Contact
• Gold Plated Brass Contact • 30 µ-in min Gold Contact Plating
• Typical VSWR of 2.1:1 up to 100 MHz
Applications
• General Purpose Test • CATV • General Purpose Test

.
Description
Pasternack’s PE9365 75 ohm BNC Tee adapter female-male-female is part of our full line of RF components available for
same-day shipping. Our BNC tee adapter has a female-male-female gender configuration. Our BNC tee connector operates
to 100 MHz. Tee adapters (also called tee connectors) are three port devices that can be used to split or combine a signal.
Unlike power dividers/combiners, however, they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 100 MHz
VSWR 2.1:1
Operating Voltage (AC) 500 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.57 in [14.48 mm]
Height 1.12 in [28.45 mm]
Weight 0.027 lbs [12.25 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Tee Adapter Female-Male-Female PE9365

PE9365 REV 1.3 1
