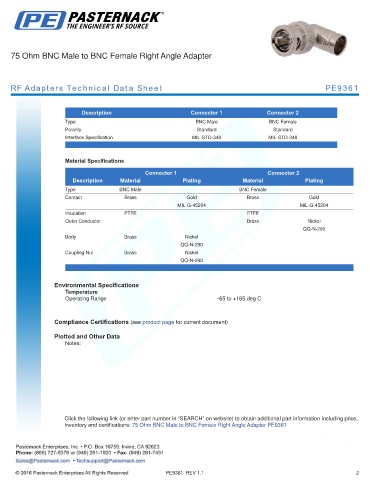

75 Ohm BNC Male to BNC Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9361

.
Description Connector 1 Connector 2
Type BNC Male BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male BNC Female
Contact Brass Gold Brass Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male to BNC Female Right Angle Adapter PE9361

PE9361 REV 1.1 2
