75 Ohm BNC Male to BNC Male Adapter

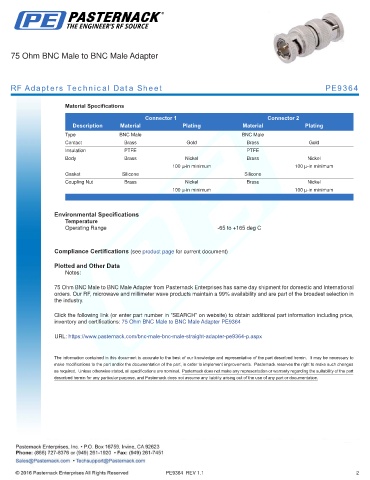

RF Adapters Technical Data Sheet PE9364

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male BNC Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
Gasket Silicone Silicone
Coupling Nut Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm BNC Male to BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male to BNC Male Adapter PE9364
