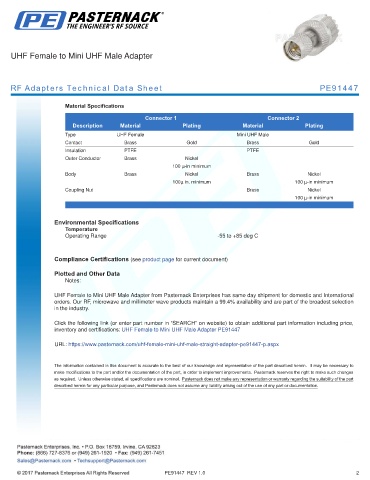

UHF Female to Mini UHF Male Adapter

RF Adapters Technical Data Sheet PE91447

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type UHF Female Mini UHF Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel Brass Nickel
100µ in. minimum 100 µ-in minimum
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

UHF Female to Mini UHF Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection
in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to Mini UHF Male Adapter PE91447

URL: https://www.pasternack.com/uhf-female-mini-uhf-male-straight-adapter-pe91447-p.aspx

PE91447 REV 1.0 2
