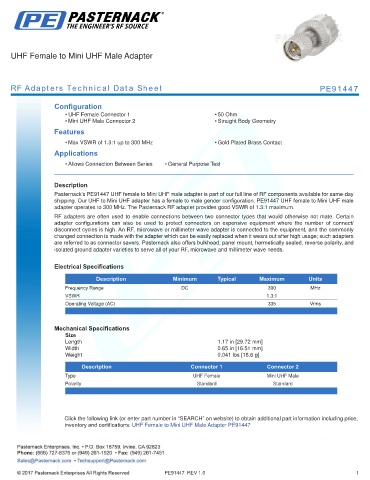

UHF Female to Mini UHF Male Adapter

RF Adapters Technical Data Sheet PE91447

Configuration
• UHF Female Connector 1 • 50 Ohm
• Mini UHF Male Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.3:1 up to 300 MHz • Gold Plated Brass Contact
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91447 UHF female to Mini UHF male adapter is part of our full line of RF components available for same-day
shipping. Our UHF to Mini UHF adapter has a female to male gender configuration. PE91447 UHF female to Mini UHF male
adapter operates to 300 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
. .

Mechanical Specifications
Size
Length 1.17 in [29.72 mm]
Width 0.65 in [16.51 mm]
Weight 0.041 lbs [18.6 g]
.
Description Connector 1 Connector 2
Type UHF Female Mini UHF Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to Mini UHF Male Adapter PE91447

PE91447 REV 1.0 1
