50 Ohm UHF Female to 75 Ohm F Female Adapter

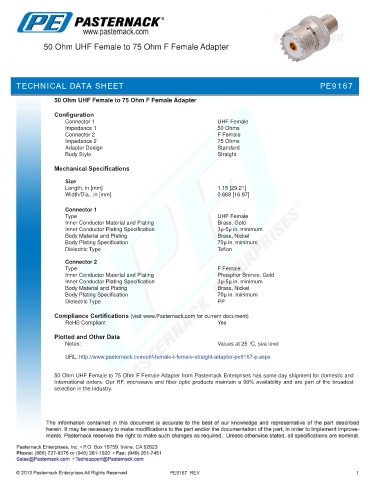

TECHNICAL DATA SHEET PE9167

50 Ohm UHF Female to 75 Ohm F Female Adapter

Configuration
Connector 1 UHF Female
Impedance 1 50 Ohms
Connector 2 F Female
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.15 [29.21]
Width/Dia., in [mm] 0.668 [16.97]
.
Connector 1
Type UHF Female
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon
Connector 2
Type F Female
Inner Conductor Material and Plating Phosphor Bronze, Gold
Inner Conductor Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type PP

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/uhf-female-f-female-straight-adapter-pe9167-p.aspx

50 Ohm UHF Female to 75 Ohm F Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

PE9167 REV 1
