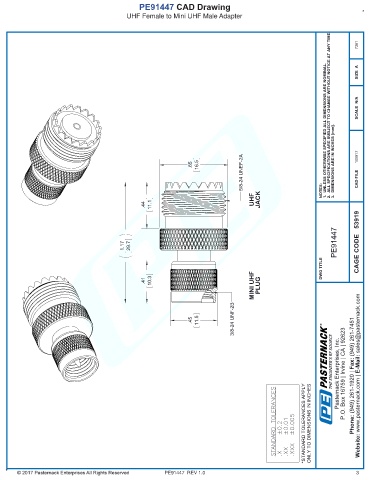

PE91447 CAD Drawing
UHF Female to Mini UHF Male Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

5/8-24 UNEF-2A
100917
.65 16.5 3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE

UHF JACK NOTES:
.44 11.1

1.17 29.7 PE91447 CAGE CODE 53919

DWG TITLE

.41 10.3
MINI UHF PLUG

3/8-24 UNF-2B

.45 11.5 R

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE91447 REV 1.0 3
