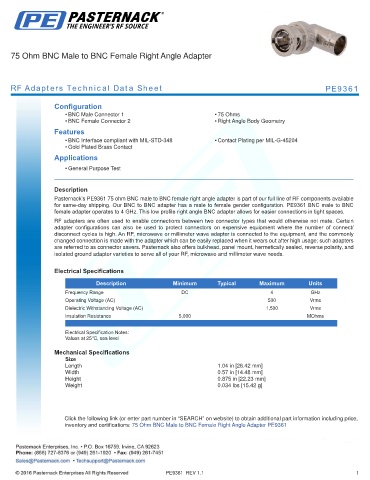

75 Ohm BNC Male to BNC Female Right Angle Adapter
RF Adapters Technical Data Sheet PE9361
Configuration
• BNC Male Connector 1 • 75 Ohms
• BNC Female Connector 2 • Right Angle Body Geometry
Features
• BNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9361 75 ohm BNC male to BNC female right angle adapter is part of our full line of RF components available
for same-day shipping. Our BNC to BNC adapter has a male to female gender configuration. PE9361 BNC male to BNC
female adapter operates to 4 GHz. This low profile right angle BNC adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level
Mechanical Specifications
Size
Length 1.04 in [26.42 mm]
Width 0.57 in [14.48 mm]
Height 0.875 in [22.23 mm]
Weight 0.034 lbs [15.42 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male to BNC Female Right Angle Adapter PE9361
PE9361 REV 1.1 1
