75 Ohm BNC Male to BNC Male Adapter

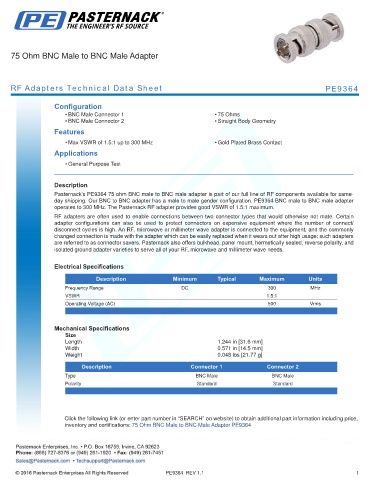

RF Adapters Technical Data Sheet PE9364

Configuration
• BNC Male Connector 1 • 75 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.5:1 up to 300 MHz • Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9364 75 ohm BNC male to BNC male adapter is part of our full line of RF components available for same-
day shipping. Our BNC to BNC adapter has a male to male gender configuration. PE9364 BNC male to BNC male adapter
operates to 300 MHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.244 in [31.6 mm]
Width 0.571 in [14.5 mm]
Weight 0.048 lbs [21.77 g]
.
Description Connector 1 Connector 2
Type BNC Male BNC Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male to BNC Male Adapter PE9364
