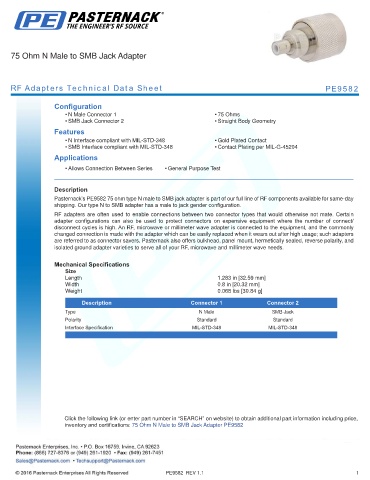

75 Ohm N Male to SMB Jack Adapter

RF Adapters Technical Data Sheet PE9582

Configuration
• N Male Connector 1 • 75 Ohms
• SMB Jack Connector 2 • Straight Body Geometry
Features
• N Interface compliant with MIL-STD-348 • Gold Plated Contact
• SMB Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9582 75 ohm type N male to SMB jack adapter is part of our full line of RF components available for same-day
shipping. Our type N to SMB adapter has a male to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.283 in [32.59 mm]
Width 0.8 in [20.32 mm]
Weight 0.068 lbs [30.84 g]
.
Description Connector 1 Connector 2
Type N Male SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to SMB Jack Adapter PE9582

PE9582 REV 1.1 1
