75 Ohm N Male to SMB Plug Adapter

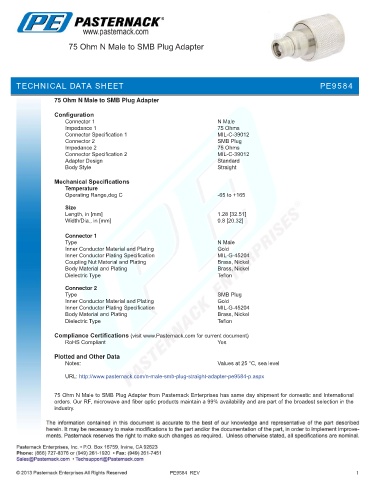

TECHNICAL DATA SHEET PE9584

75 Ohm N Male to SMB Plug Adapter

Configuration
Connector 1 N Male
Impedance 1 75 Ohms
Connector Specification 1 MIL-C-39012
Connector 2 SMB Plug
Impedance 2 75 Ohms
Connector Specification 2 MIL-C-39012
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.28 [32.51]
Width/Dia., in [mm] 0.8 [20.32]
.
Connector 1
Type N Male
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type SMB Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/n-male-smb-plug-straight-adapter-pe9584-p.aspx

75 Ohm N Male to SMB Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9584 REV 1
