75 Ohm N Male to SMC Plug Adapter

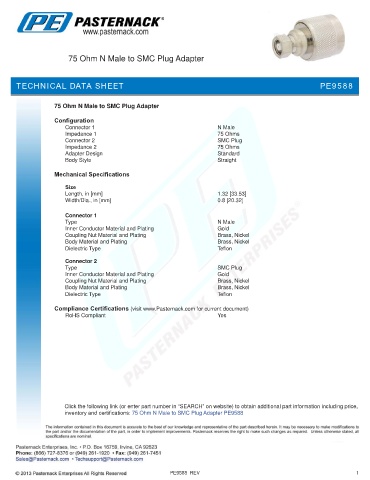

TECHNICAL DATA SHEET PE9588

75 Ohm N Male to SMC Plug Adapter

Configuration
Connector 1 N Male
Impedance 1 75 Ohms
Connector 2 SMC Plug
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.32 [33.53]
Width/Dia., in [mm] 0.8 [20.32]
.
Connector 1
Type N Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type SMC Plug
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to SMC Plug Adapter PE9588

PE9588 REV 1
