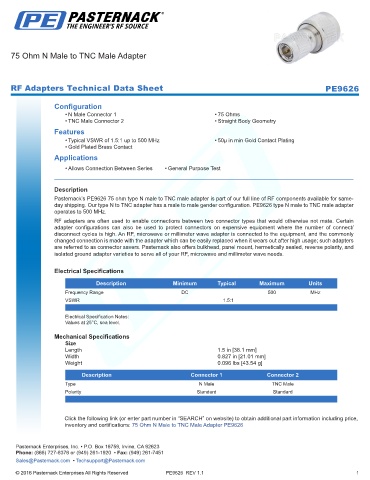

75 Ohm N Male to TNC Male Adapter

RF Adapters Technical Data Sheet PE9626

Configuration
• N Male Connector 1 • 75 Ohms
• TNC Male Connector 2 • Straight Body Geometry
Features
• Typical VSWR of 1.5:1 up to 500 MHz • 50µ in min Gold Contact Plating
• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9626 75 ohm type N male to TNC male adapter is part of our full line of RF components available for same-
day shipping. Our type N to TNC adapter has a male to male gender configuration. PE9626 type N male to TNC male adapter
operates to 500 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.5:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 0.827 in [21.01 mm]
Weight 0.096 lbs [43.54 g]
.
Description Connector 1 Connector 2
Type N Male TNC Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to TNC Male Adapter PE9626

PE9626 REV 1.1 1
