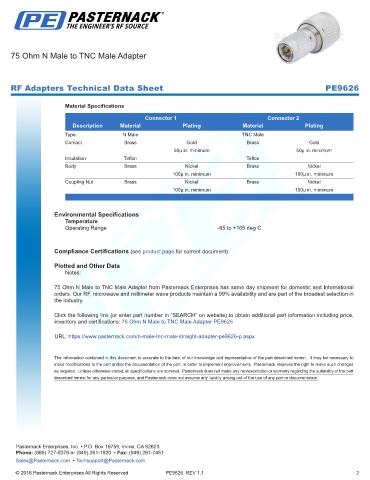

75 Ohm N Male to TNC Male Adapter

RF Adapters Technical Data Sheet PE9626

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male TNC Male
Contact Brass Gold Brass Gold
50µ in. minimum 50µ in. minimum
Insulation Teflon Teflon
Body Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
Coupling Nut Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
75 Ohm N Male to TNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to TNC Male Adapter PE9626

URL: https://www.pasternack.com/n-male-tnc-male-straight-adapter-pe9626-p.aspx

PE9626 REV 1.1 2
