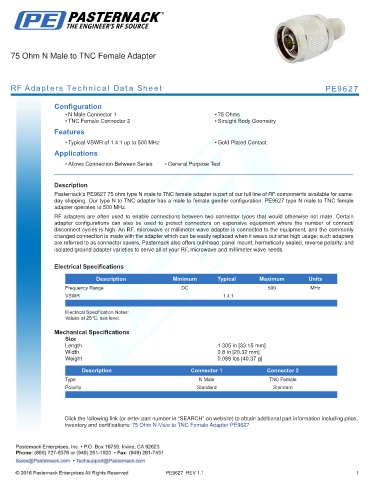

75 Ohm N Male to TNC Female Adapter

RF Adapters Technical Data Sheet PE9627

Configuration
• N Male Connector 1 • 75 Ohms
• TNC Female Connector 2 • Straight Body Geometry
Features

• Typical VSWR of 1.4:1 up to 500 MHz • Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9627 75 ohm type N male to TNC female adapter is part of our full line of RF components available for same-
day shipping. Our type N to TNC adapter has a male to female gender configuration. PE9627 type N male to TNC female
adapter operates to 500 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.4:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.305 in [33.15 mm]
Width 0.8 in [20.32 mm]
Weight 0.089 lbs [40.37 g]
.
Description Connector 1 Connector 2
Type N Male TNC Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to TNC Female Adapter PE9627

PE9627 REV 1.1 1
