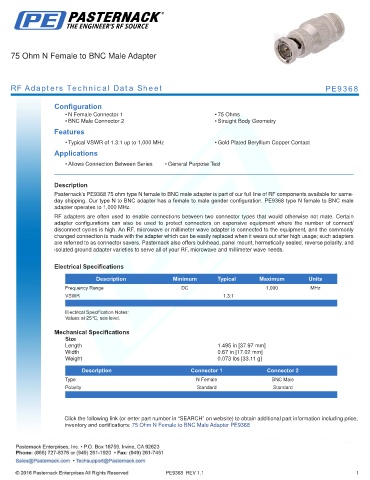

75 Ohm N Female to BNC Male Adapter

RF Adapters Technical Data Sheet PE9368

Configuration
• N Female Connector 1 • 75 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features

• Typical VSWR of 1.3:1 up to 1,000 MHz • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9368 75 ohm type N female to BNC male adapter is part of our full line of RF components available for same-
day shipping. Our type N to BNC adapter has a female to male gender configuration. PE9368 type N female to BNC male
adapter operates to 1,000 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.495 in [37.97 mm]
Width 0.67 in [17.02 mm]
Weight 0.073 lbs [33.11 g]
.
Description Connector 1 Connector 2
Type N Female BNC Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to BNC Male Adapter PE9368

PE9368 REV 1.1 1
