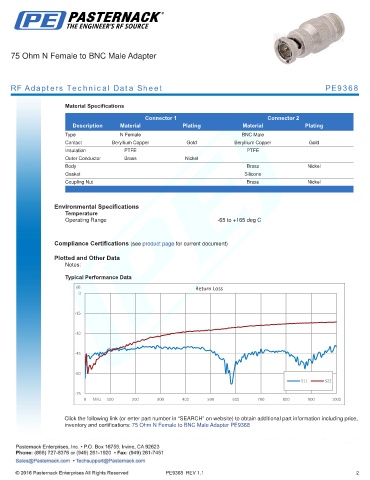

75 Ohm N Female to BNC Male Adapter
RF Adapters Technical Data Sheet PE9368
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female BNC Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel
Body Brass Nickel
Gasket Silicone
Coupling Nut Brass Nickel
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Typical Performance Data
dB Return Loss
0
-15
-30
-45
-60
S11 S22
-75
0 MHz 100 200 300 400 500 600 700 800 900 1000
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to BNC Male Adapter PE9368
