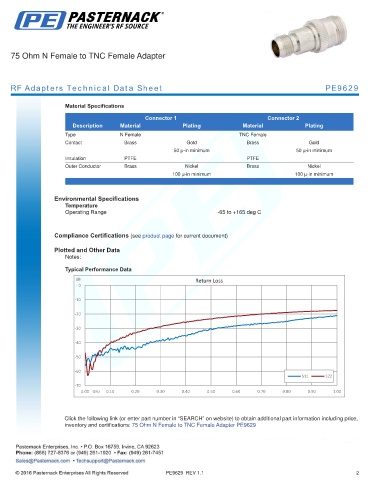

75 Ohm N Female to TNC Female Adapter
RF Adapters Technical Data Sheet PE9629
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female TNC Female
Contact Brass Gold Brass Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0.00 GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to TNC Female Adapter PE9629
PE9629 REV 1.1 2
