75 Ohm PAL Plug to PAL Plug Adapter

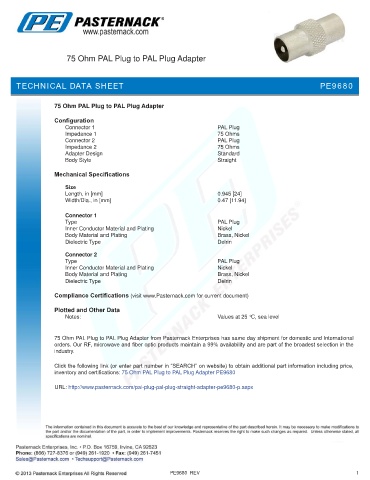

TECHNICAL DATA SHEET PE9680

75 Ohm PAL Plug to PAL Plug Adapter

Configuration
Connector 1 PAL Plug
Impedance 1 75 Ohms
Connector 2 PAL Plug
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 0.945 [24]
Width/Dia., in [mm] 0.47 [11.94]
.
Connector 1
Type PAL Plug
Inner Conductor Material and Plating Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Delrin

Connector 2
Type PAL Plug
Inner Conductor Material and Plating Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Delrin

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm PAL Plug to PAL Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm PAL Plug to PAL Plug Adapter PE9680

URL: http://www.pasternack.com/pal-plug-pal-plug-straight-adapter-pe9680-p.aspx

PE9680 REV 1
