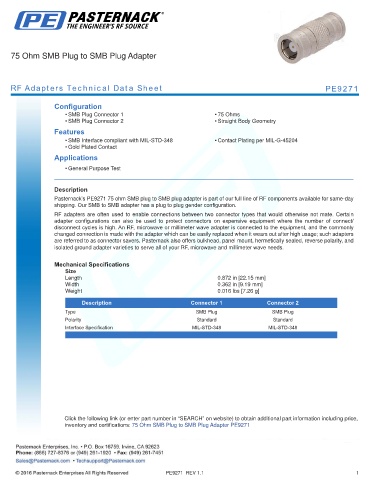

75 Ohm SMB Plug to SMB Plug Adapter

RF Adapters Technical Data Sheet PE9271

Configuration
• SMB Plug Connector 1 • 75 Ohms
• SMB Plug Connector 2 • Straight Body Geometry
Features
• SMB Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9271 75 ohm SMB plug to SMB plug adapter is part of our full line of RF components available for same-day
shipping. Our SMB to SMB adapter has a plug to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.872 in [22.15 mm]
Width 0.362 in [9.19 mm]
Weight 0.016 lbs [7.26 g]
.
Description Connector 1 Connector 2
Type SMB Plug SMB Plug
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug to SMB Plug Adapter PE9271
