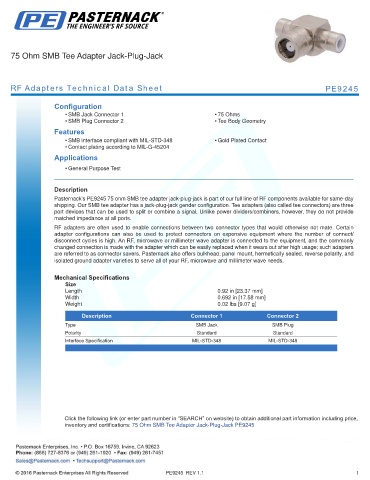

75 Ohm SMB Tee Adapter Jack-Plug-Jack

RF Adapters Technical Data Sheet PE9245

Configuration
• SMB Jack Connector 1 • 75 Ohms
• SMB Plug Connector 2 • Tee Body Geometry
Features
• SMB interface compliant with MIL-STD-348 • Gold Plated Contact
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE9245 75 ohm SMB tee adapter jack-plug-jack is part of our full line of RF components available for same-day
shipping. Our SMB tee adapter has a jack-plug-jack gender configuration. Tee adapters (also called tee connectors) are three
port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not provide
matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.92 in [23.37 mm]
Width 0.692 in [17.58 mm]
Weight 0.02 lbs [9.07 g]
.
Description Connector 1 Connector 2
Type SMB Jack SMB Plug
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Tee Adapter Jack-Plug-Jack PE9245

PE9245 REV 1.1 1
