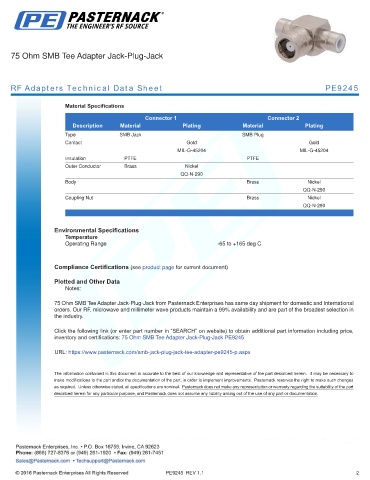

75 Ohm SMB Tee Adapter Jack-Plug-Jack

RF Adapters Technical Data Sheet PE9245

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Jack SMB Plug
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm SMB Tee Adapter Jack-Plug-Jack from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Tee Adapter Jack-Plug-Jack PE9245

URL: https://www.pasternack.com/smb-jack-plug-jack-tee-adapter-pe9245-p.aspx

PE9245 REV 1.1 2
