P. 3408

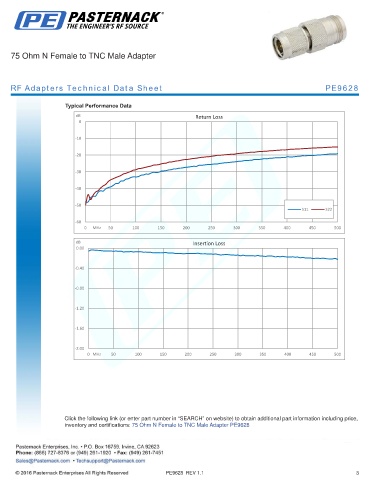

75 Ohm N Female to TNC Male Adapter
RF Adapters Technical Data Sheet PE9628
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0 MHz 50 100 150 200 250 300 350 400 450 500
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0 MHz 50 100 150 200 250 300 350 400 450 500
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to TNC Male Adapter PE9628
PE9628 REV 1.1 3
