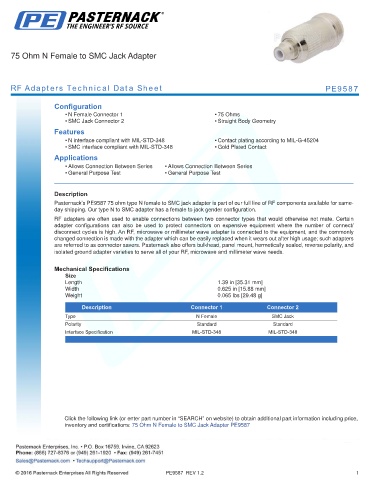

75 Ohm N Female to SMC Jack Adapter

RF Adapters Technical Data Sheet PE9587

Configuration
• N Female Connector 1 • 75 Ohms
• SMC Jack Connector 2 • Straight Body Geometry
Features
• N interface compliant with MIL-STD-348 • Contact plating according to MIL-G-45204
• SMC interface compliant with MIL-STD-348 • Gold Plated Contact
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9587 75 ohm type N female to SMC jack adapter is part of our full line of RF components available for same-
day shipping. Our type N to SMC adapter has a female to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.39 in [35.31 mm]
Width 0.625 in [15.88 mm]
Weight 0.065 lbs [29.48 g]
.
Description Connector 1 Connector 2
Type N Female SMC Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to SMC Jack Adapter PE9587

PE9587 REV 1.2 1
