75 Ohm N Female to SMC Plug Adapter

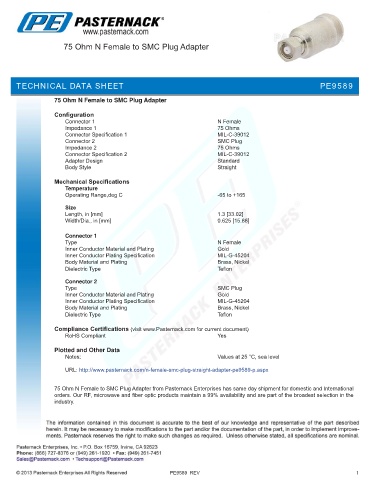

TECHNICAL DATA SHEET PE9589

75 Ohm N Female to SMC Plug Adapter

Configuration
Connector 1 N Female
Impedance 1 75 Ohms
Connector Specification 1 MIL-C-39012
Connector 2 SMC Plug
Impedance 2 75 Ohms
Connector Specification 2 MIL-C-39012
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.3 [33.02]
Width/Dia., in [mm] 0.625 [15.88]
.
Connector 1
Type N Female
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type SMC Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/n-female-smc-plug-straight-adapter-pe9589-p.aspx

75 Ohm N Female to SMC Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9589 REV 1
