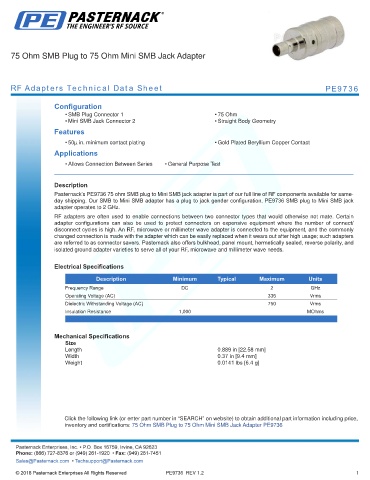

75 Ohm SMB Plug to 75 Ohm Mini SMB Jack Adapter

RF Adapters Technical Data Sheet PE9736

Configuration
• SMB Plug Connector 1 • 75 Ohm
• Mini SMB Jack Connector 2 • Straight Body Geometry
Features

• 50µ in. minimum contact plating • Gold Plated Beryllium Copper Contact
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9736 75 ohm SMB plug to Mini SMB jack adapter is part of our full line of RF components available for same-
day shipping. Our SMB to Mini SMB adapter has a plug to jack gender configuration. PE9736 SMB plug to Mini SMB jack
adapter operates to 2 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
Insulation Resistance 1,000 MOhms
. .

Mechanical Specifications
Size
Length 0.889 in [22.58 mm]
Width 0.37 in [9.4 mm]
Weight 0.0141 lbs [6.4 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug to 75 Ohm Mini SMB Jack Adapter PE9736
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9736 REV 1.2 1
