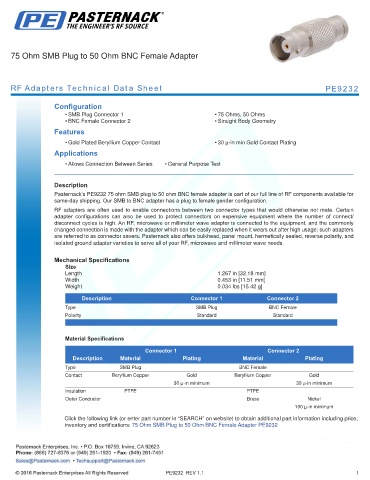

75 Ohm SMB Plug to 50 Ohm BNC Female Adapter

RF Adapters Technical Data Sheet PE9232

Configuration
• SMB Plug Connector 1 • 75 Ohms, 50 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Beryllium Copper Contact • 30 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9232 75 ohm SMB plug to 50 ohm BNC female adapter is part of our full line of RF components available for
same-day shipping. Our SMB to BNC adapter has a plug to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.267 in [32.18 mm]
Width 0.453 in [11.51 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type SMB Plug BNC Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Plug BNC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug to 50 Ohm BNC Female Adapter PE9232

PE9232 REV 1.1 1
