3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter

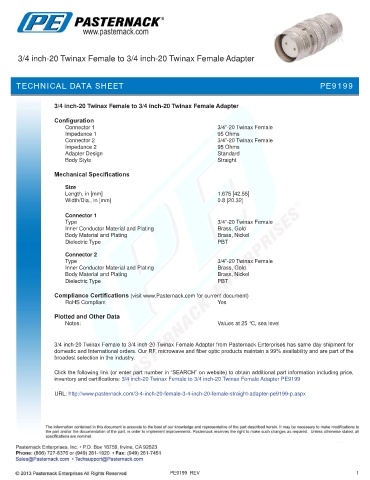

TECHNICAL DATA SHEET PE9199

3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter

Configuration
Connector 1 3/4”-20 Twinax Female
Impedance 1 95 Ohms
Connector 2 3/4”-20 Twinax Female
Impedance 2 95 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.675 [42.55]
Width/Dia., in [mm] 0.8 [20.32]
.
Connector 1
Type 3/4”-20 Twinax Female
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PBT

Connector 2
Type 3/4”-20 Twinax Female
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PBT

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter PE9199

URL: http://www.pasternack.com/3-4-inch-20-female-3-4-inch-20-female-straight-adapter-pe9199-p.aspx

PE9199 REV 1
