3/4 inch-20 Twinax Tee Adapter Female-Female-Female

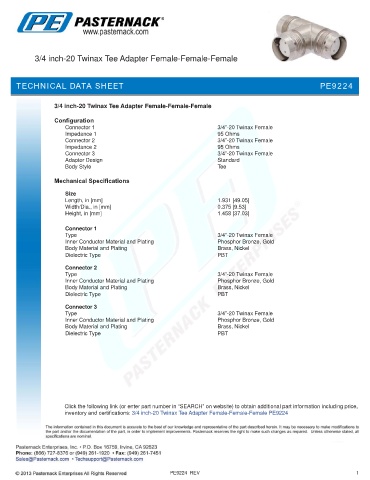

TECHNICAL DATA SHEET PE9224

3/4 inch-20 Twinax Tee Adapter Female-Female-Female

Configuration
Connector 1 3/4”-20 Twinax Female
Impedance 1 95 Ohms
Connector 2 3/4”-20 Twinax Female
Impedance 2 95 Ohms
Connector 3 3/4”-20 Twinax Female
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 1.931 [49.05]
Width/Dia., in [mm] 0.375 [9.53]
Height, in [mm] 1.458 [37.03]
.
Connector 1
Type 3/4”-20 Twinax Female
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PBT
Connector 2
Type 3/4”-20 Twinax Female
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PBT
Connector 3
Type 3/4”-20 Twinax Female
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PBT

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Tee Adapter Female-Female-Female PE9224

PE9224 REV 1
