Bulkhead 3/4 inch-20 Twinax Female to 3/4
inch-20 Twinax Female Adapter

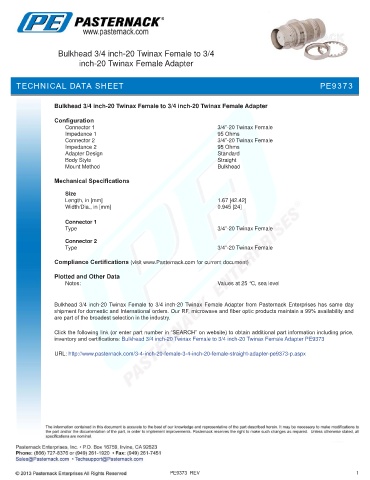

TECHNICAL DATA SHEET PE9373

Bulkhead 3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter

Configuration
Connector 1 3/4”-20 Twinax Female
Impedance 1 95 Ohms
Connector 2 3/4”-20 Twinax Female
Impedance 2 95 Ohms
Adapter Design Standard
Body Style Straight
Mount Method Bulkhead
Mechanical Specifications

Size
Length, in [mm] 1.67 [42.42]
Width/Dia., in [mm] 0.945 [24]
.
Connector 1
Type 3/4”-20 Twinax Female

Connector 2
Type 3/4”-20 Twinax Female

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

Bulkhead 3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead 3/4 inch-20 Twinax Female to 3/4 inch-20 Twinax Female Adapter PE9373

URL: http://www.pasternack.com/3-4-inch-20-female-3-4-inch-20-female-straight-adapter-pe9373-p.aspx

PE9373 REV 1
